Lightweight Transformer Hipot Test Machine AC DC High Voltage Dry Type

Brand Name : AI

Model Number : DHP

Certification : ISO

Place of Origin : China

MOQ : 1 Set AC DC Hipot

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000 sets per month

Delivery Time : 15 days

Packaging Details : AC DC Hipot packed in Plywooe case

Power supply : AC220V±10%, 50Hz/60Hz

Type : Dry transformer

Voltage output : 50KV/100KV

Keyword : AC DC Hipot,Dry Type Test Transformer

Output capacity : 5~150KVA

Warranty : 1 Year

Purpose : insulation test of high voltage equipment

Operation : Manual

Contact Now

AC and DC High Voltage Dry Type Test Transformer

I. Introduction:

Dry Type Test Transformer AC DC Hipot Tester is applied in power system for insulation test of high voltage equipment.

The typical application of the HIPOT tester is as follow:

Power Transformer AC high voltage withstand test
Circuit Breaker AC high voltage withstand test
High voltage motors high voltage withstand test
Voltage/current transformer high voltage withstand test
High voltage power source for calibration of high voltage meter

II. Specifications:

Please confirm the right model before order. The main parameters include input voltage, maximum output voltage and capacity.
The parameters in this table are response for HV tes transformer only and we will match the main control box according to the capacity and input voltage you need.

Model	Max output capacity (KVA)	Max high voltage output (KV)	Max current in hv circuit (MA)	Voltage current input of voltage booster(V)	Voltage current input of voltage booster (A)	Ratio
DHP (D)-5/50	5	50	100	200	25	500
DHP (D) -10/50	10	50	200	220/380	50/26	500
DHP (D) -20/50	20	50	400	380	53	500
DHP (D) -30/50	30	50	600	380	79	500
DHP (D)-40/50	40	50	800	380	105	500
DHP (D) -50/50	50	50	1000	380	132	500
DHP (D) -5/100	5	100	50	200	25	1000
DHP (D) -10/100	10	100	100	200/380	50/26	1000
DHP (D)-20/100	20	100	200	380	53	1000
DHP (D)-30/100	30	100	300	380	79	1000
DHP (D) -40/100	40	100	400	380	105	1000
DHP (D)-50/100	50	100	500	380	132	1000
DHP (D)-100/100	100	100	100	500	263	1000
DHP (D) -150/100	150	100	1500	500	300	1000

Note:The capacity and maximum voltage output could be customized according to the requirements if you can not find the right one in this table;

The weight listed in the table is HV test transformer only,and it does not include the weight of main control box. Please confirm the total weight of AC or AD/DC hipot tester with our sales before order.

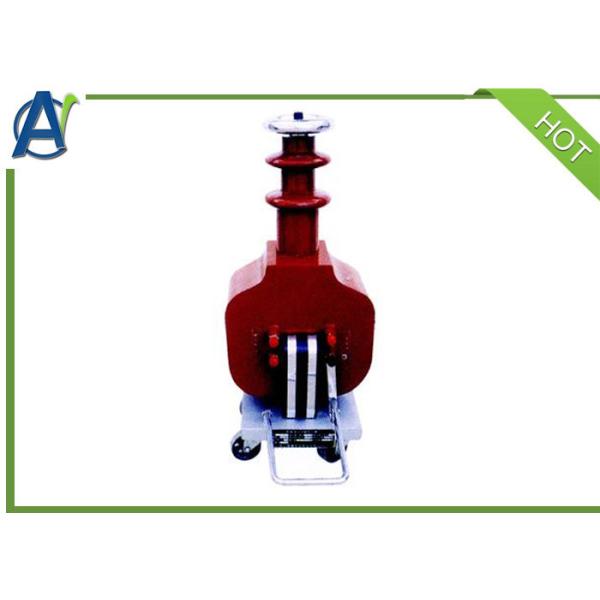

Picture of AC DC Dry Type Hipot Test Transformer

Lightweight Transformer Hipot Test Machine AC DC High Voltage Dry Type
