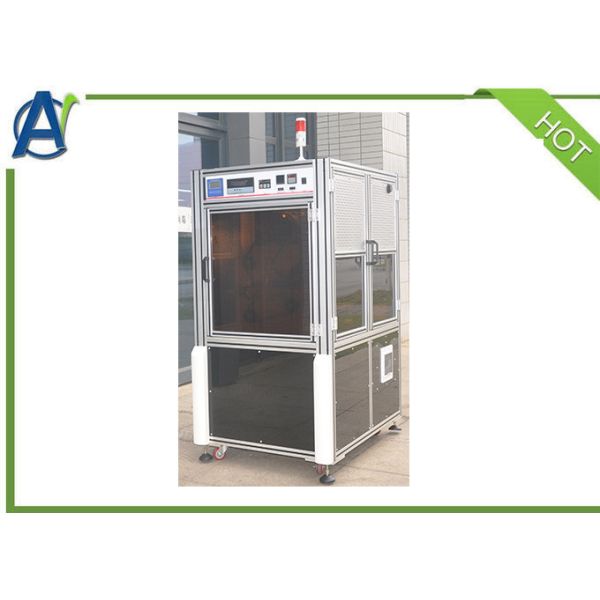

ASTM D2809 Analyzer for Cavitation Corrosion and Erosion-Corrosion Characteristicsof Aluminum Pumps With Engine Coolants

Brand Name : AI

Model Number : AIC-2809

Certification : ISO

Place of Origin : China

MOQ : 1 set Cavitation Corrosion and Erosion-Corrosion Characteristics Analyzer

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 sets per month

Delivery Time : 30 days

Packaging Details : Cavitation Corrosion and Erosion-Corrosion Characteristics Analyzer packed in one plywood case

Power Supply : AC220V /50HZ

Test standard : ASTM D2809, SH/T0087

Pump speed : 0 ~ 4600 ± 100r / min

Temperature control range : < 650 ºC

Flow range : 0 ~ 20ml / min

Power consumption : 6500W

Fuse : 20A

Test object : Aluminum pump with engine coolant

Color : White

OEM service : Available

Contact Now

Introduction

The test method of Cavitation Corrosion and Erosion-Corrosion Characteristics Analyzer is: pump the sample with a standard aluminum automobile water pump, run it for 100h under the conditions of 113 ºC, 103kpa and pump speed of 4600r / min, and then check the water pump to determine the degree of cavitation corrosion, and grade it according to the grading system table.

Characteristic

1. The Cavitation Corrosion and Erosion-Corrosion Characteristics Analyzer is composed of operation and display, heating control, speed control, pressure control, flow control system and supporting components;
2. Motor: used for coolant circulation drive, linked with water pump;
3. Water pump: the standard ASTM D method requires imported water pump;
4. Vacuum pressure gauge: digital display of real-time pump inlet vacuum;
5. Throttle valve: used to regulate the flow rate of water pump;
6. Heater: heat the coolant to the test temperature;
7. Liquid storage tank: stores cooling liquid for pipeline system;
8. Heat exchanger: provide 35 ~ 38 ºC test temperature through cooling water heat exchange;
9. Regulating valve: three regulating valves are used to adjust vacuum degree and test pressure;
10. Pressure gauge: displays the pressure during the test;
11. Expansion tank: steam expansion device

Technical specifications of ASTM D2809 Cavitation Corrosion and Erosion-Corrosion Characteristics Analyzer

1 Applicable standards ASTM D2809, SH/T0087
2 Environmental requirements 20 ºC ~ 25 ºC, humidity < 60%
3 Fuse 20A
4 Pump speed 0 ~ 4600 ± 100r / min
5 Temperature control range < 650 ºC
6 Resolution (measurement) 0.1 ºC
7 Temperature control accuracy ± 0.1 ºC
8 Flow range 0 ~ 20ml / min
9 Flow control accuracy ± 5%
10 Power supply AC220V 50Hz
11 Power consumption 6.5KW
